Automatic Juice, tea, vitamin drinks liquid carbonated beverage filling machine

Name: Automatic Juice tea vitamin drinks liquid carbonated beverage filling machine
Brand: SUNSWELL
Price: 1 USD

Wholesale Automatic Juice, tea, vitamin drinks liquid carbonated beverage filling machine from china suppliers

Model Number : RCGF50-50-12

Place of Origin : Jiangsu

Brand Name : SUNSWELL

Certification : CE, ISO, SGS, UL

MOQ : 1 set

Price : Negotiable

Packaging Details : Seaworthy Wooden Case

Delivery Time : 15 days

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Type : Filling Machine

Application : Beverage, Food, Beverage

Packaging Type : Bottles, Cans

Driven Type : Electric

Dimension : 3400*1950*1900MM

Production : 150 cans/mins

Contact Now

Automatic Juice, tea, vitamin drinks liquid carbonated beverage filling machine

3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks, juice, tea, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

Applications:
PET bottles with all volumes and shapes for juice, tea, energy drinks, milk, vitamin drinks, functional beverage, etc.

Competitive Advantage:

Main features

1. Rinser

Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.

Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.

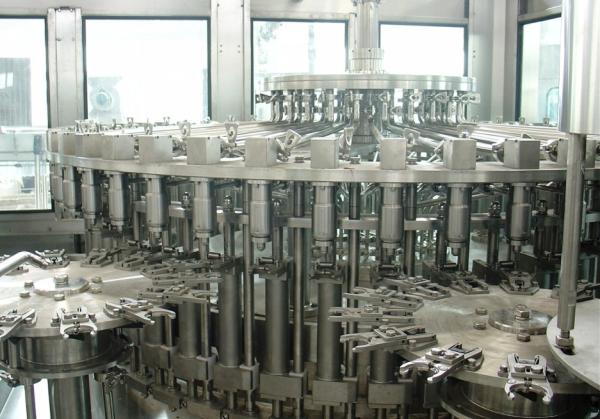

2. Filler

The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck ,it start to fill.
Bottle is conveying by the wheel in the filling part.
The juice or other hot beverage can be backflow by return tank to control filling temperature.

3. Capper

Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. our screw capping has following feature.

Equipment structure
Base
Rotary rinser
Rotary filler
Rotary capper
Bottle infeed and outfeed system
Control

Main configuration
Touch screen: THINGET
PLC program controller: Mitsubishi
Inverter: Mitsubishi
Photoelectrical controller: Autonics
Proximity switch: Autonics
Other electrical components: Schneider
Pneumatic component: Airtac
Water pump: Nanfang
Main motor: Siemens
Bearing: Harbin

Specifications:

Model	RCGF50-50-12
Number of working positions	water rinser 50, filler 50, capper 12
Rated capacity	18,000BPH (500ml)
Filling method	Gravity filling
Applicable bottle	diameter 50– 96mm, height 165– 310mm
Air supply pressure	0.7 MPa
Air consumption	0.8M³/min
Rinsing water pressure	0.2-0.25 MPa
Rinsing water consumption	5 tons/hour
Main motor power	7.5Kw
Installed power	11Kw
Dimensions	5004×3826×2700mm(L×W×H)
Machine weight	8200Kg
